3 AXLES Tanker Chassis
The container chassis is a key piece of equipment in the transportation industry, used for handling and transporting various types of standard containers. These chassis are specifically designed to ensure a secure and stable connection between the container and the truck, enabling safe transportation across different routes.
Pouya Khodro Mahan, utilizing modern technology and international standards, manufactures and supplies high-quality container chassis trailers with exceptional strength and precise engineering design. These products are capable of carrying both 20-foot and 40-foot containers and, due to their durable structure, are an ideal choice for transportation companies.
Technical Specifications
The chassis and other metal components are made of high-strength steel (S500 MC / ST52-3) using a special semi-automatic CO₂/Argon welding machine (Merkle Technology) , Each web plates are integrated , Assembled using a special fixture
Chassis Constraction
3×9 tons(27tons) intra disc brake or drum brake, front axle with automatic lifting function, air suspension system with special shock absorber, Automatic and manual height adjustment capability with rotary slide valve ,Height limitation system (FOX / SAF)
Suspension and axles
2 speed , Dynamic Capacity 24 tons & Static Capacity 50 tons , operated from the right side, (OMS)
Landing Legs
2×7 and 15 Pole quick release connector, 24 volts system, rear and side light with LED type according to European Standard UNECE R48, E20 and E9, equipped with SMCG (ASPOCK)
Electric System
Two double acting diaphragm brake chamber for each two rear axles and two single acting diaphragm brake chamber for lifting axle ,EBS System (Electronic Brake System) with ABS (Anti-lock Brake System) and RSP (Roll Stability Program) Disc and Drum, park release emergency valve, reset to ride height function ,KNORR® / WABCO® (Germany)
Breaking System
2 Inch dia. (152 / 162 KN) with special flange, according to SAE standard
Kingpin
Sand Blasted according to SA2.5
One layer of epoxy primer, and one layer of final polyurethane coating as per customer requirement
Painting

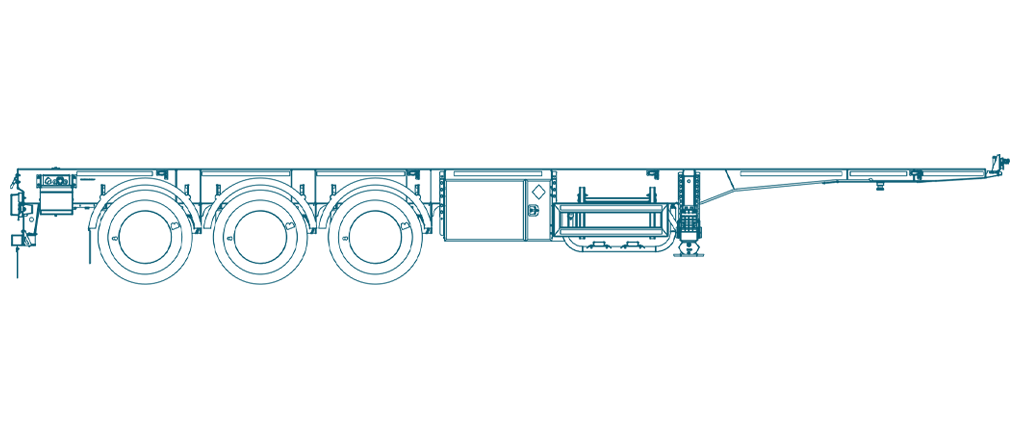

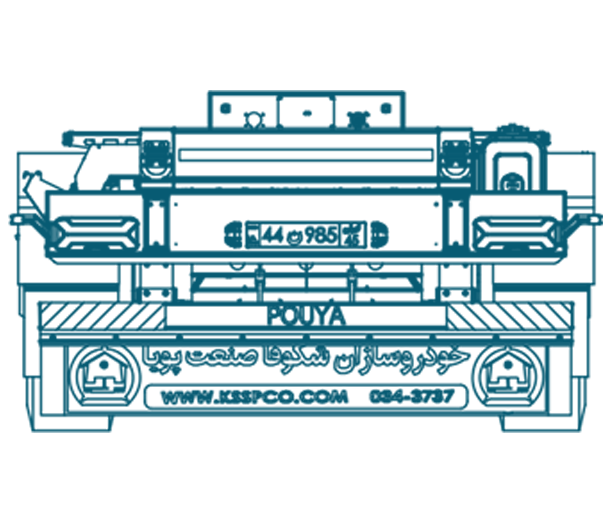

| 8365 mm | Centre of 5th wheel to Center of middle axle | 11500 kg | Kingpin load | |
3764 mm | End of chassis to Center of middle axle | 27000 kg | Axle load | |
1454 mm | Rear overhang | 4200 kg | Tare weight | |
1472 mm | Overall height | 32000 kg | Payload (semi trailer+load) | |
2550 mm | Outside width | 1150 – 1200 mm | 5th wheel height | |
11262 mm
| Overall length | 1310 mm |
Other Accessories
- Double Spare Wheel Carrier with special lock
- Stainless steel water tank, 30 L
- Metal fire extinguisher box
- toolbox with internal drawers
- 2 heavy duty swings
- 6 x tubeless radial tires 385/65R22.5
- 6 x single integrated rims R22.5-11.75
- 6 Semi-circle mud guards
- 2 Rear rain Flap according to IR EU 109 standard
- Adjustable Rear under-run protection according to UNECE R58 standard
- 2 wheel chocks with holders
Options
- Spare tire and rim
- Stainless steel water tank, 60 L
- Fabrication and Installation of the Tank and Associated Equipment
Licenses
- Has been approved by the Iranian National Standards Organization.
- Regard for welding standards and offering certificate of welding inspection ,dimensional control and dimensional control.

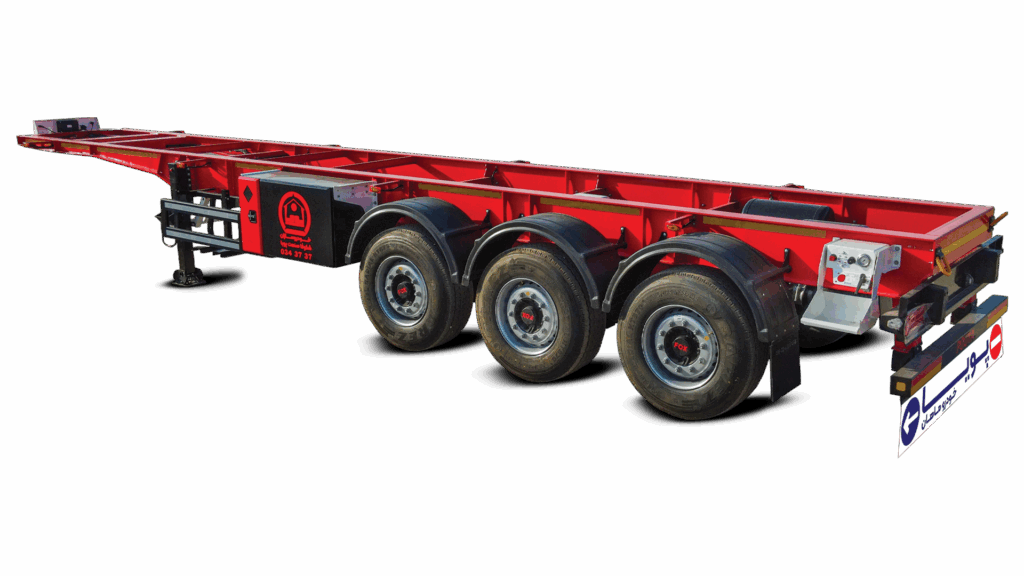

Product photos
