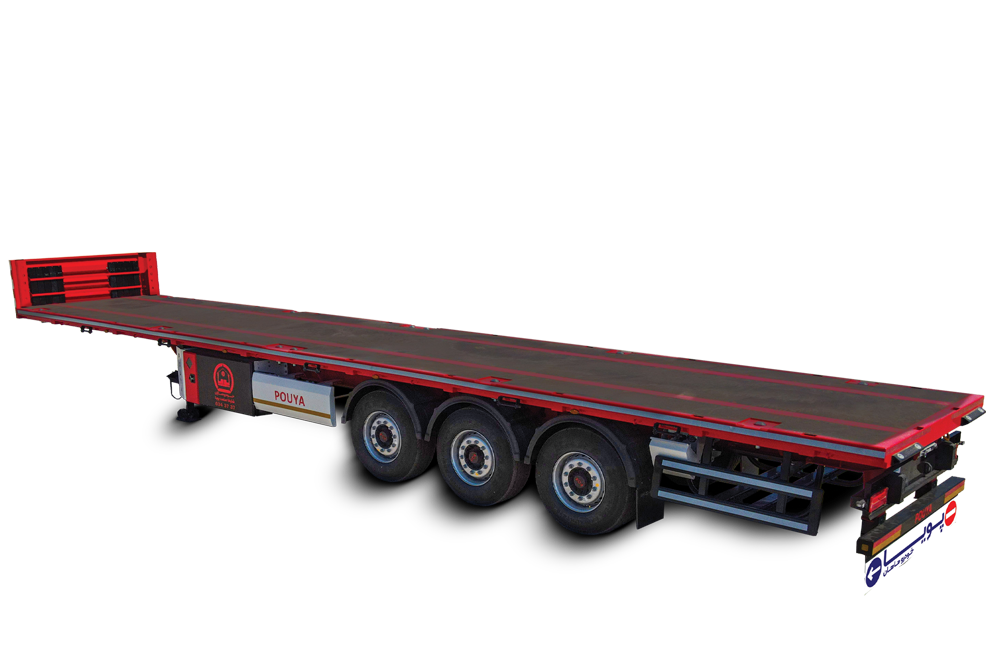

3 AXLES Flatbed SEMI TRAILER 13.70

Pouya Khodro Mahan flatbed trailers, built with high-strength steel, quality components, and an expert engineering team, deliver a durable and efficient product. These trailers are capable of transporting a wide range of cargo, including containers, oversized loads, and bulky heavy items such as steel balls, beams, and rebars.

The deck floor is made of wear-resistant plywood, which enhances durability and provides drivers with safe and reliable loading. With Pouya Khodro Mahan flatbed trailers, transporting heavy and bulky loads becomes easier and more secure than ever.

Technical Specifications

The chassis and other metal components are made of high-strength steel (S500 MC / ST52-3) using a special semi-automatic CO₂/Argon welding machine (Merkle Technology) Assembled using a special fixture

Chassis Constraction

Floor Covered By 30 mm abrasion resistance plywood with pillar and ratchet holders in appropriate distances

Floor Construction

3×9 tons(27tons) intra disc brake or drum brake, front axle with automatic lifting function, air suspension system with special shock absorber, Automatic and manual height adjustment capability with rotary slide valve , Height limitation system

Suspension and axles

2 speed , Dynamic Capacity 24 tons & Static Capacity 50 tons , operated from the right side, (OMS)

Landing Legs

2×7 and 15 Pole quick release connector, 24 volts system, rear and side light with LED type according to European Standard UNECE R48, E20 and E9, equipped with SMCG (ASPOCK)

Electric System

Two double acting diaphragm brake chamber for each two rear axles and two single acting diaphragm brake chamber for lifting axle , EBS System (Electronic Brake System) with ABS (Anti-lock Brake System) and RSP (Roll Stability Program) Disc and Drum, park release emergency valve, reset to ride height function , KNORR® / WABCO® (Germany)

Breaking System

2 Inch dia. (152 / 162 KN) with special flange, according to SAE standard

Kingpin

Sand Blasted according to SA2.5

One layer of epoxy primer, and one layer of final polyurethane coating as per customer requirement

Painting

Other Accessories

6 x tubeless radial tires 385/65R22.5
6 x single integrated rims R22.5-11.75
6 Semi-circle mud guards
2 Rear rain Flap according to IR EU 109 standard
Adjustable Rear under-run protection according to UNECE R58 standard
2 wheel chocks with holders
Double Spare Wheel Carrier with special lock

Options

Licenses

Product photos

Khodrosazan Shokoufa Sanat PouyaCo. , leveraging up-to-date technical knowledge and a team of experts, is active in the design and production of various trailers, dump trucks, and road transportation equipment. We are committed to quality, innovation, and customer satisfaction throughout the country.

Legal Notice

Pouyan Industrial Group

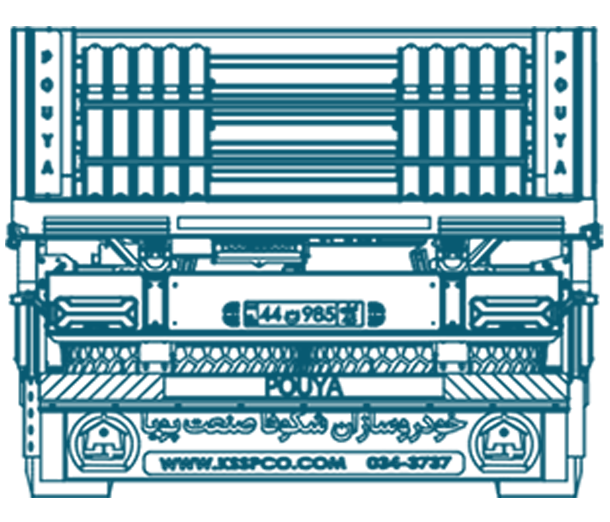

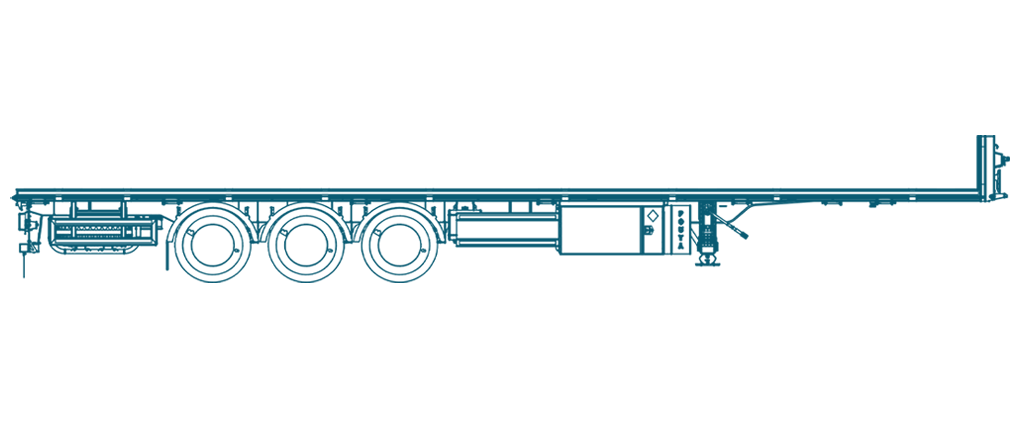

2750 mm	Rear overhang	11500 kg	Kingpin load
2270 mm	Overall height	27000 kg	Axle load
2550 mm	Outside width	6500 kg	Tare weight
2550 mm	Functional width	32000 kg	Payload (semi trailer+load)
13845 mm	Overall length	1150 – 1200 mm	5th wheel height
13590 mm	Functional length	1310 mm	Axle spread
4060 mm	End of chassis to Center of middle axle	7940 mm	Centre of 5th wheel to Center of middle axle
